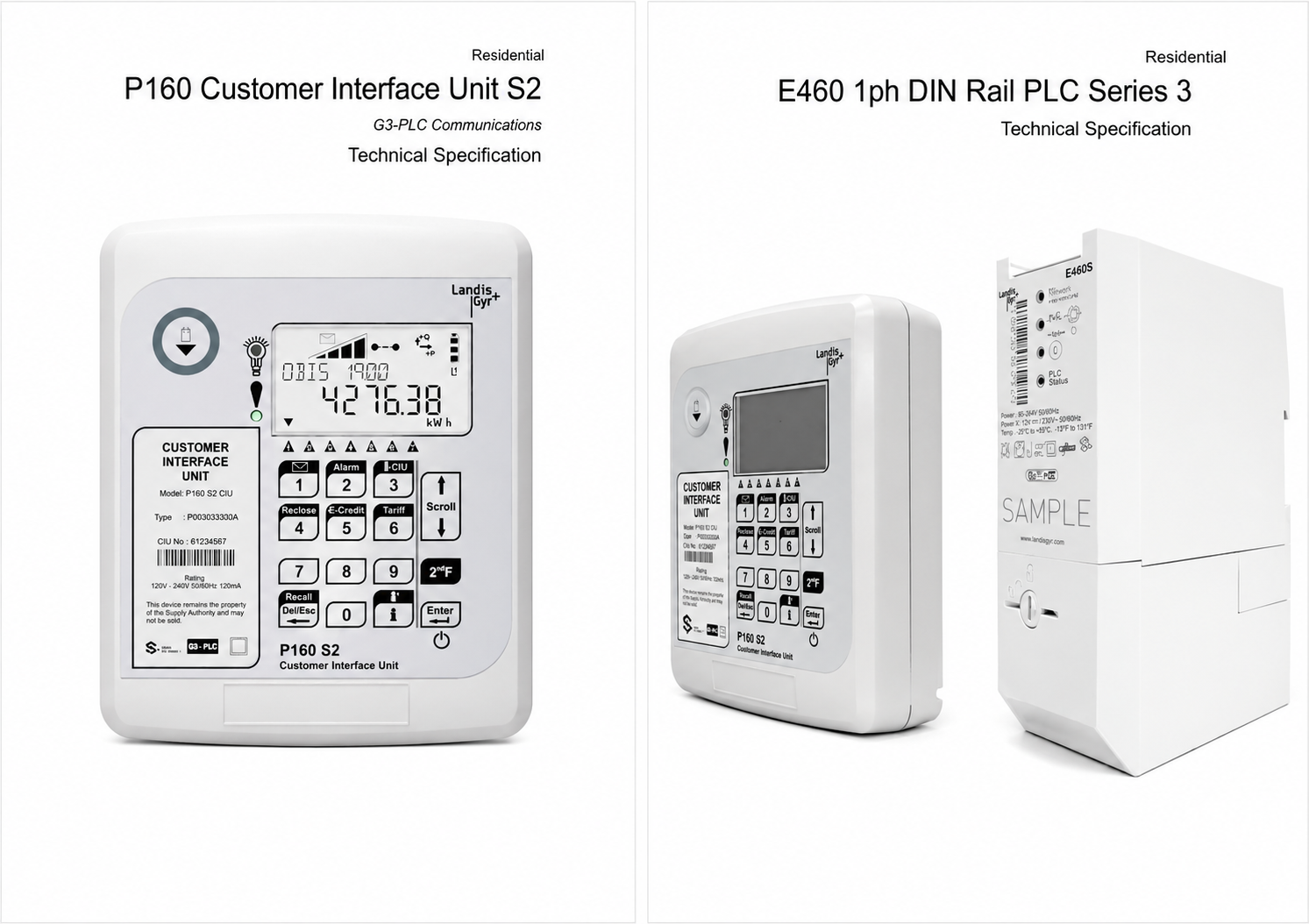

Landis+Gyr E460 1ph DIN Rail PLC Series 3 Smart Prepayment Meter with P160 CIU

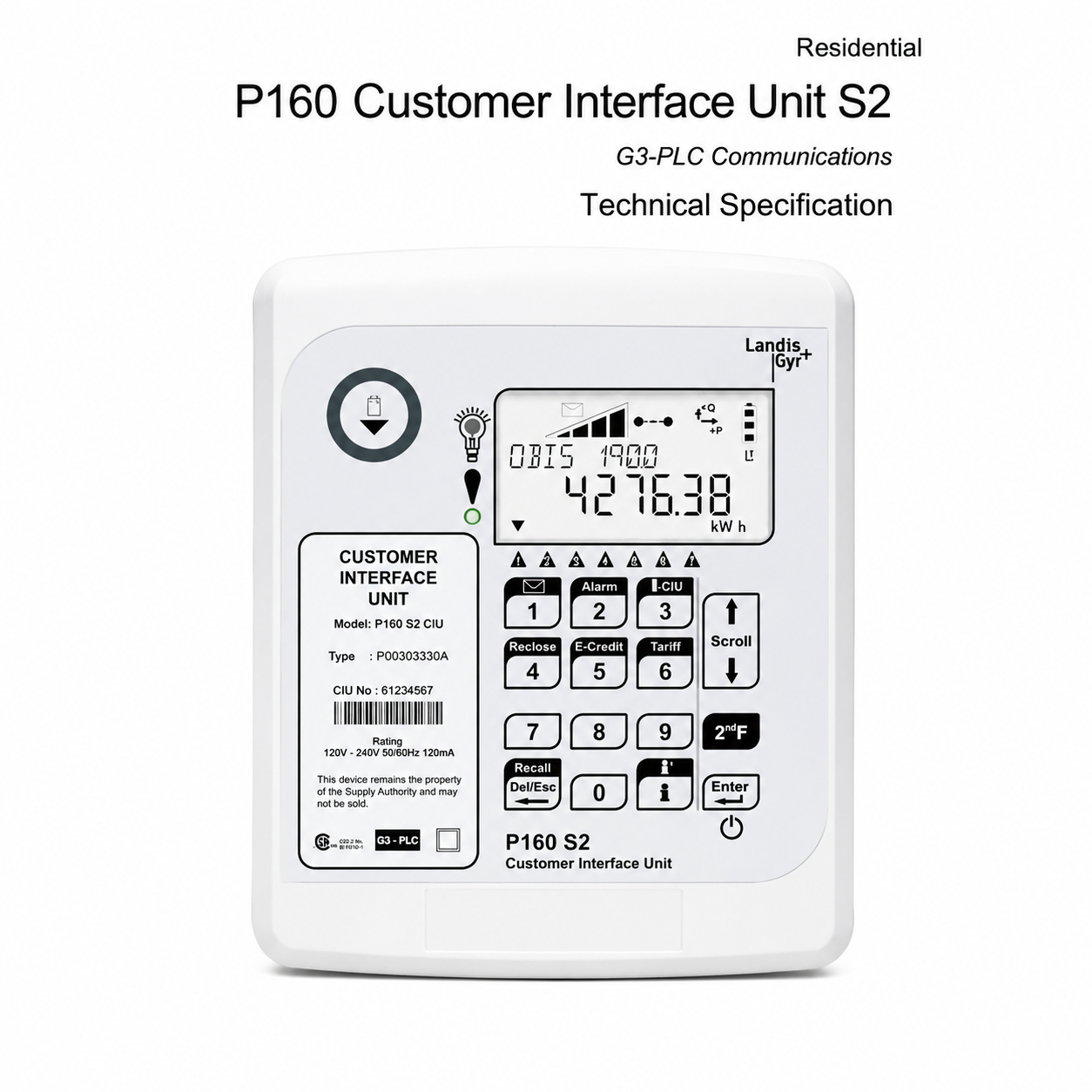

Meter Type: Single phase DIN rail smart split prepayment meter Model: E460 1ph DIN Rail PLC Series 3 Customer Interface Unit: P160 Customer Interface Unit S2 Brand: Landis+Gyr Application: Residential smart metering, Eskom electrification, AMI projects, estates, complexes, rental properties and managed electricity networks Network Type: Single phase, 2 wire Installation Format: DIN rail mount, pole-top enclosure, street kiosk, meter box or secure distribution environment Prepayment Standard: STS prepayment Communication Standard: OFDM G3-PLC Smart Metering Protocol: DLMS / COSEM System Communication: Works with P160 CIU and DC450 Data Concentrator Head End Integration: Supported through DC450 Data Concentrator and Head End System Meter Housing: DIN rail bottom connect format Rated Voltage: 110V to 240V AC Frequency: 50Hz or 60Hz Base Current: 5A Maximum Current: 80A Accuracy: Class 1 active energy Protection Rating: IP54 for meter P160 CIU Protection Rating: IP51 Meter Dimensions Short Cover: 135.5mm height x 60mm width x 110mm depth Meter Dimensions Long Cover: 165.5mm height x 60mm width x 110mm depth P160 CIU Dimensions: 144mm height x 120mm width x 40.8mm depth P160 CIU Supply Voltage: 110V to 240V AC P160 CIU Battery: 1 x 9V battery Keypad: P160 customer keypad with LCD display Remote Functions: Remote reading, event notification, fraud logs and disconnect or reconnect support depending on system configuration Meter Modes: STS prepaid, smart prepayment, TOU and postpaid support depending on configuration Tamper Protection: Terminal cover sensing, fraud logs and secure split metering design Use With DC Options: Designed to work in smart metering environments with compatible DC450 PLC Data Concentrator options
