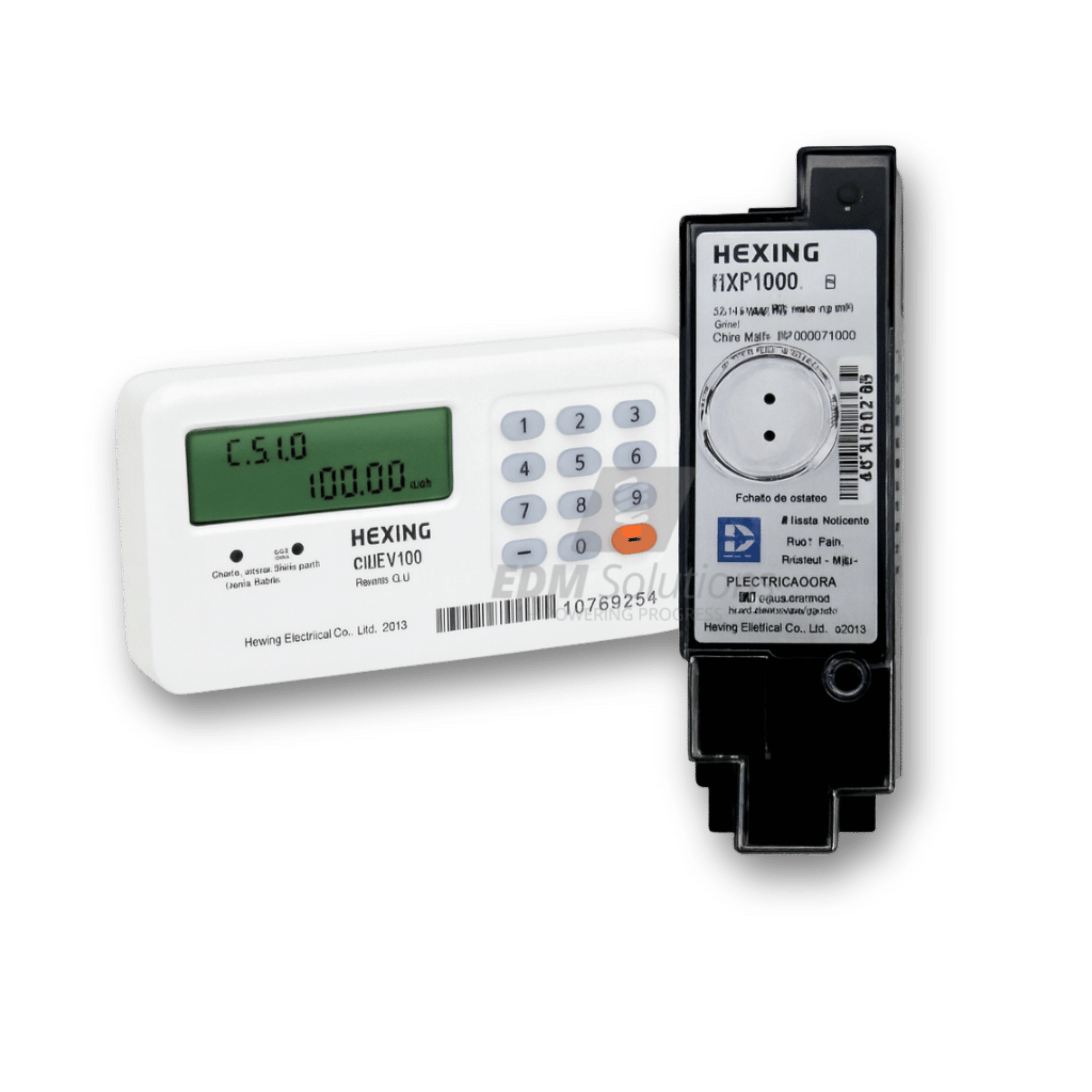

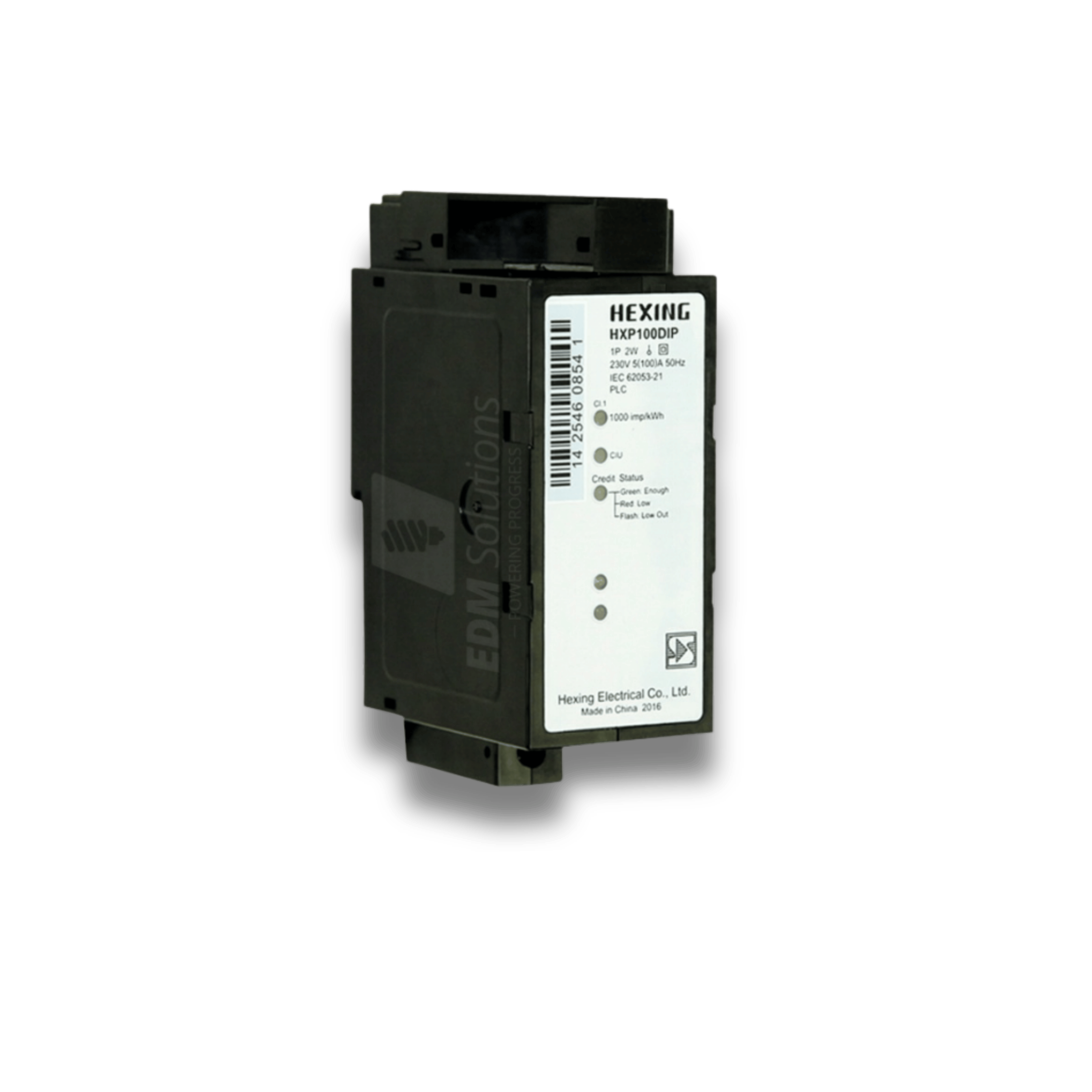

Hexing HXP100DI Single Phase DIN Rail Split Prepaid Electricity Meter

Meter Type: Single phase DIN rail split prepaid electricity meter Model: HXP100DI Installation Type: DIN rail installation Phase: Single phase, two wire Prepayment Standard: STS compliant Supported CIU: CIU EV-KP or CIU EV-SP Operating Modes: Prepaid and postpaid mode switchable Communication with CIU: PLC / MBUS / RF, depending on site configuration Communication Protocol: DLMS / COSEM Optical Communication: Supported Measurement: Active energy, active reverse energy and instantaneous value measurement Reference Voltage: 110-127V / 220-240V Operating Voltage Range: 70% to 120% Un Basic Current: 5A / 10A Maximum Current: 60A / 80A / 100A, depending on configuration Starting Current: Less than or equal to 0.4% Ib Frequency: 50Hz or 60Hz Accuracy: Class 1 or 2 IEC; Class A or B MID Load Control: Internal switch relay for load demand control Tamper Protection: Meter cover open detection and event record optional Billing Data: 12-month billing data and frozen data inquiry Emergency Credit: Supported depending on user credit level Protection Rating: IP51 Humidity: Up to 95% Operating Temperature: -25C to +60C Storage Temperature: -40C to +75C Connection Terminals: 10mm Dimensions: 164mm x 100mm x 46mm Net Weight: Approximately 0.53kg Application: Residential units, rental properties, flats, complexes, estates and light commercial single phase prepaid installations
