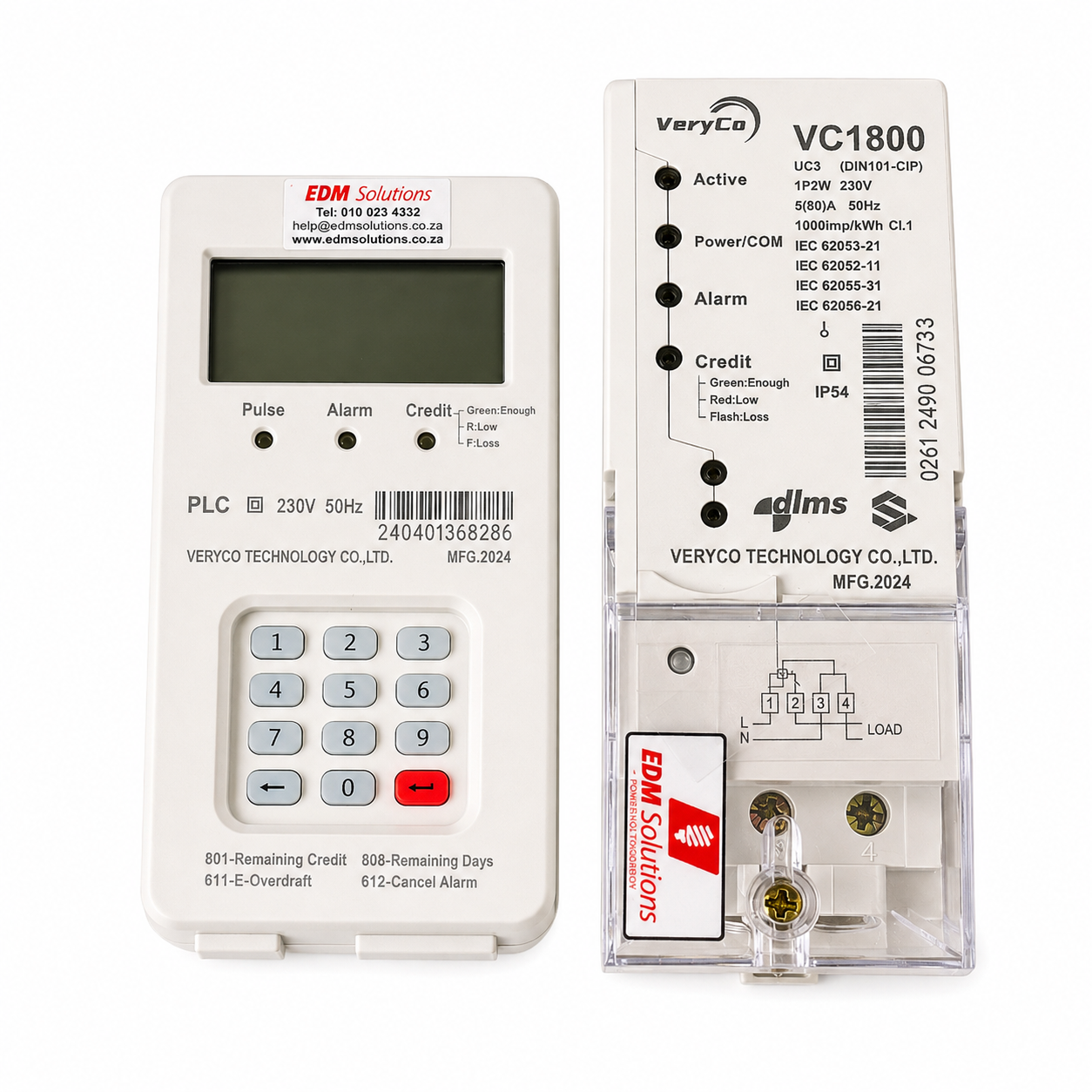

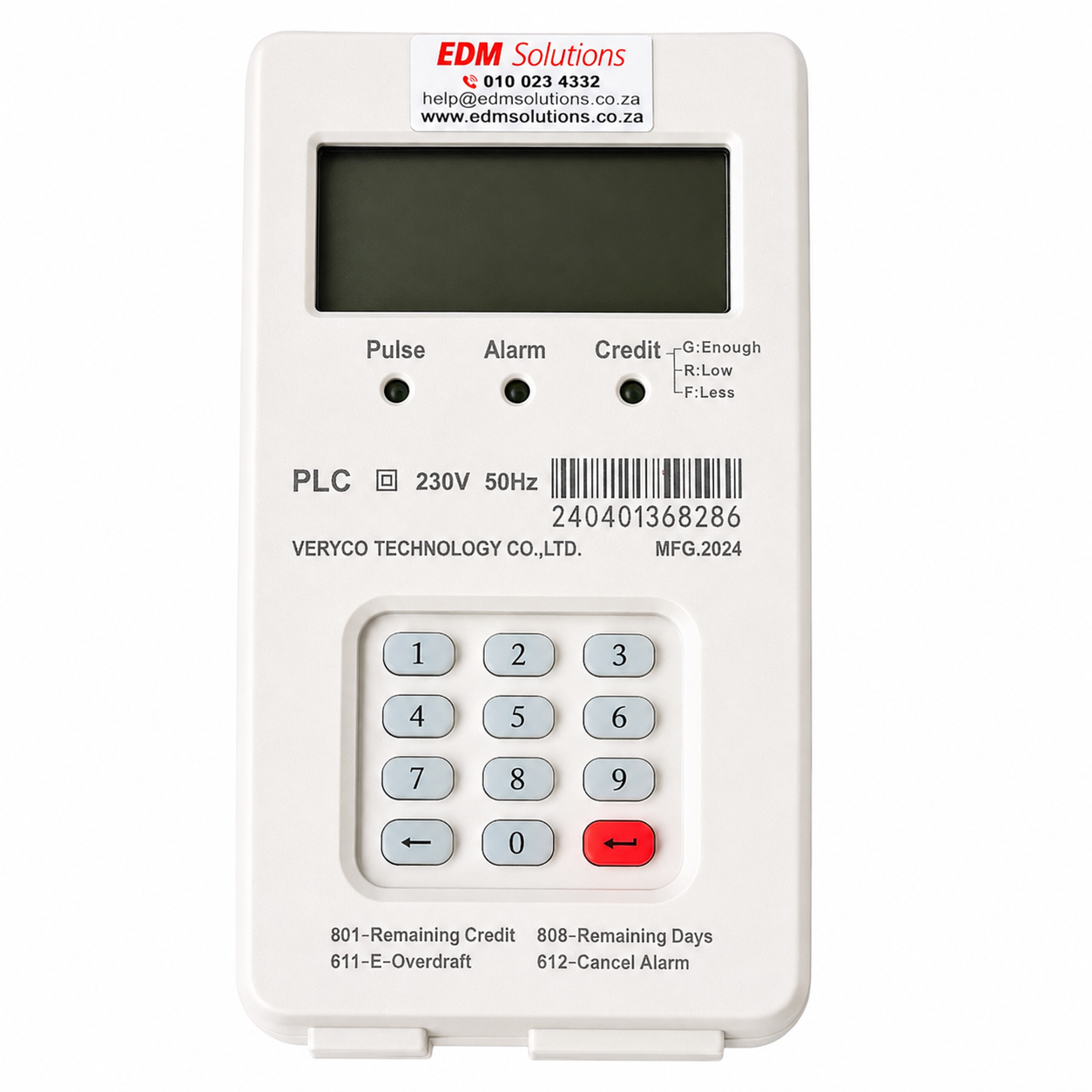

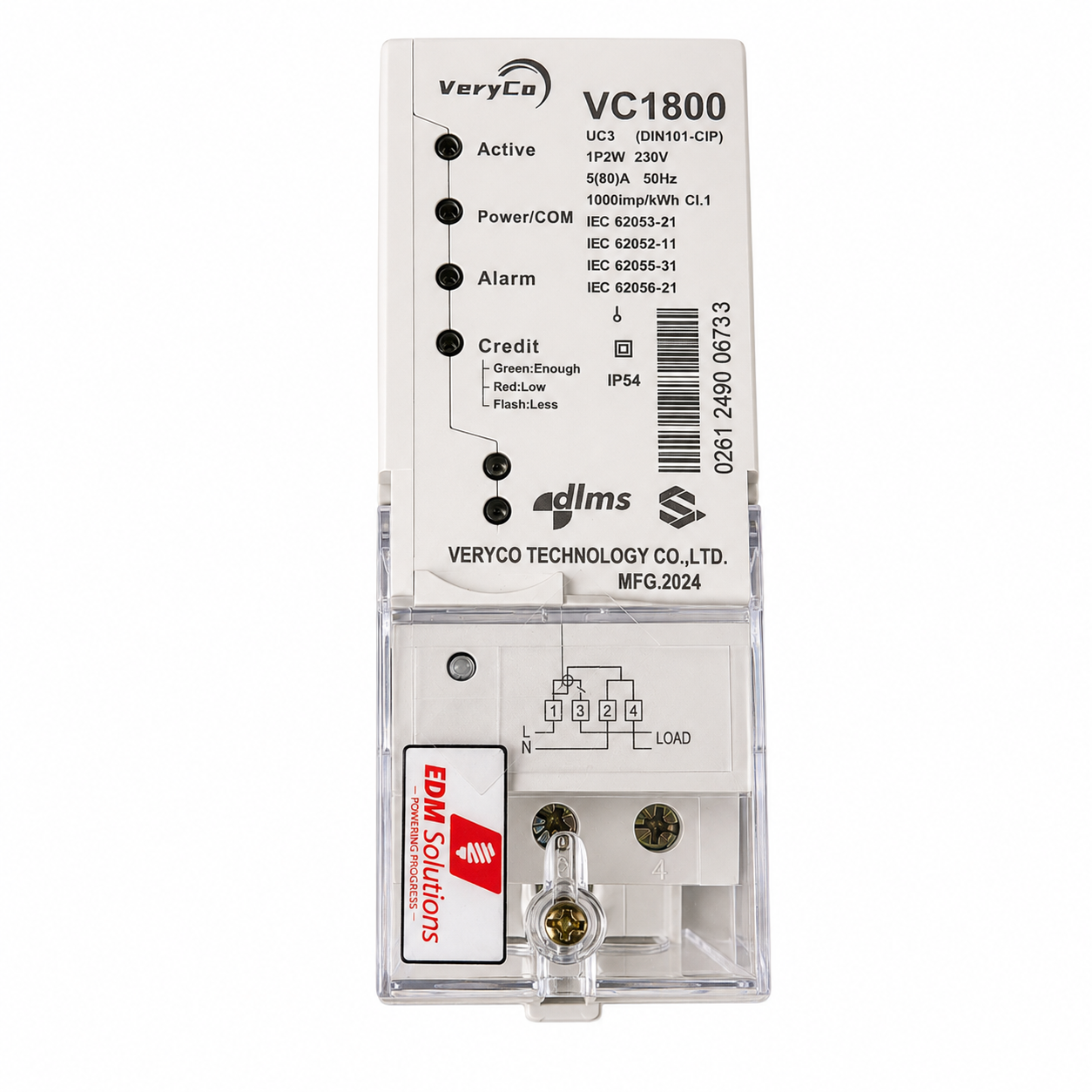

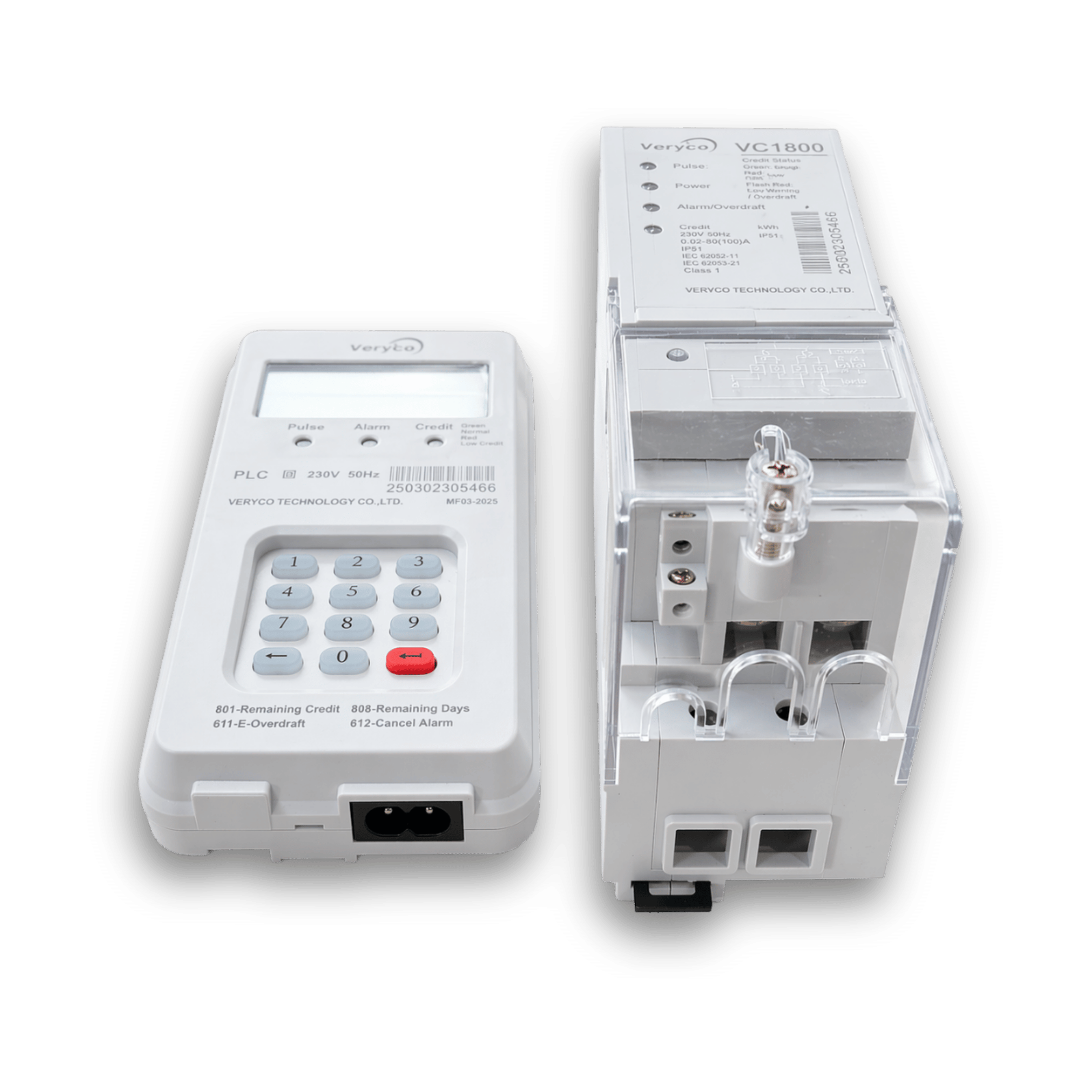

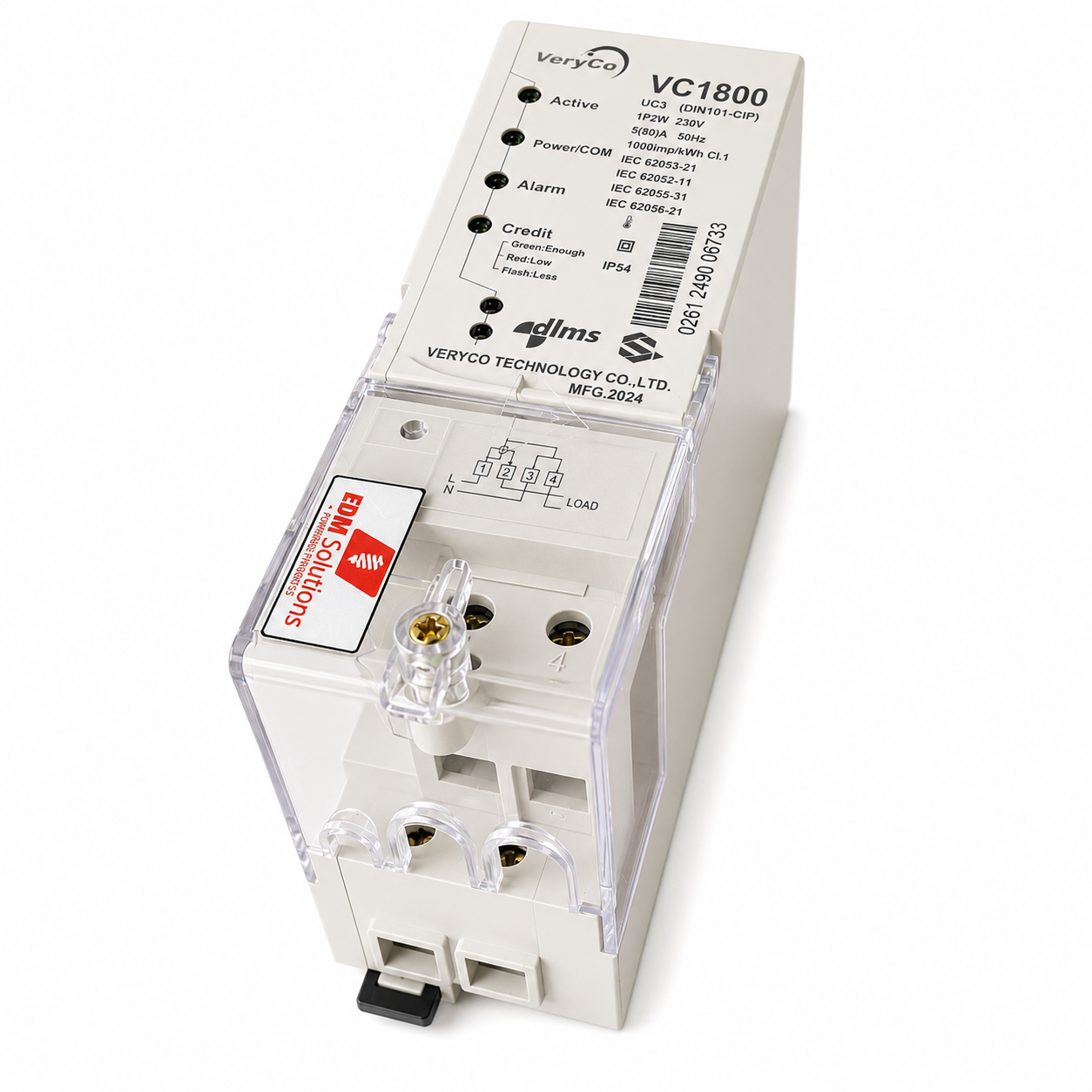

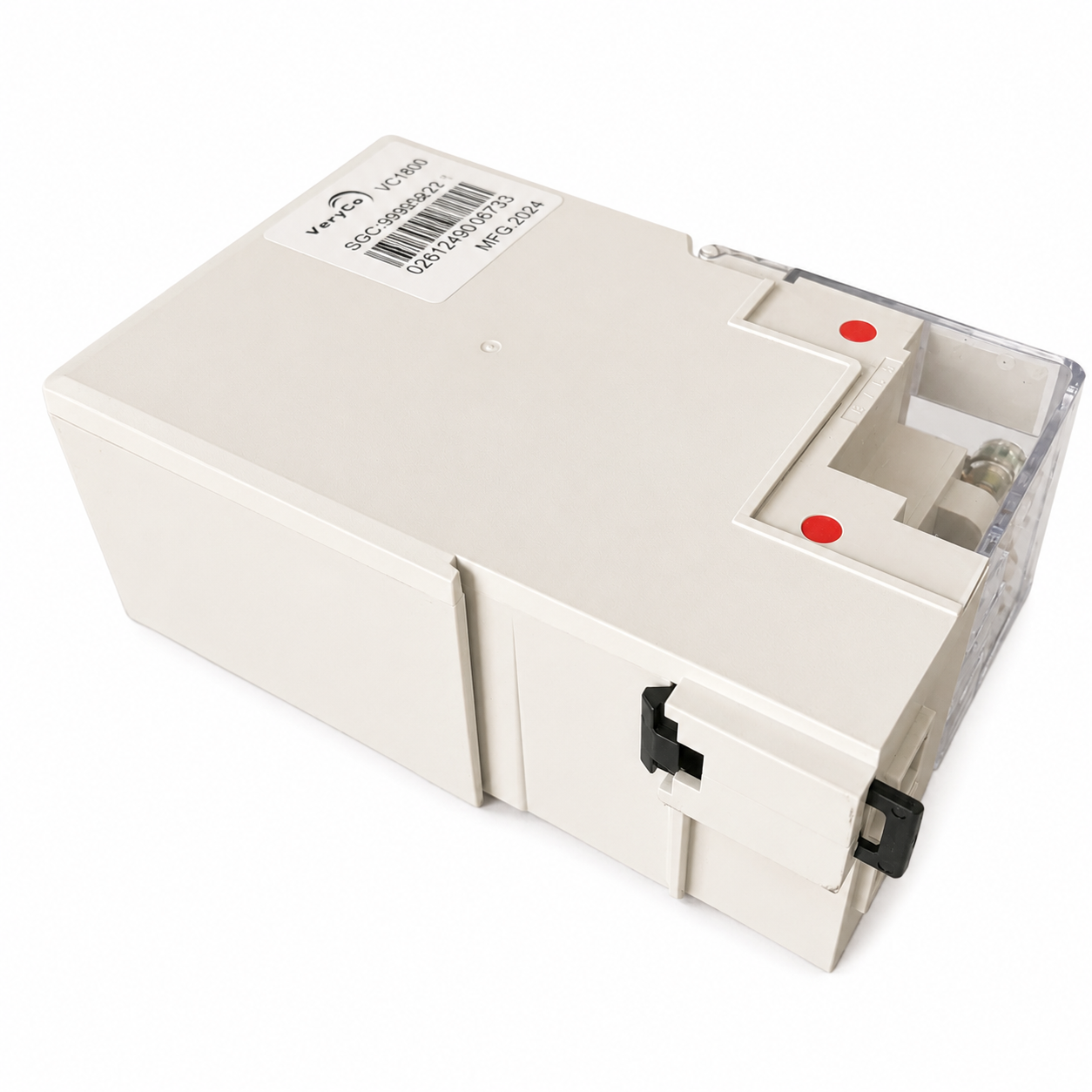

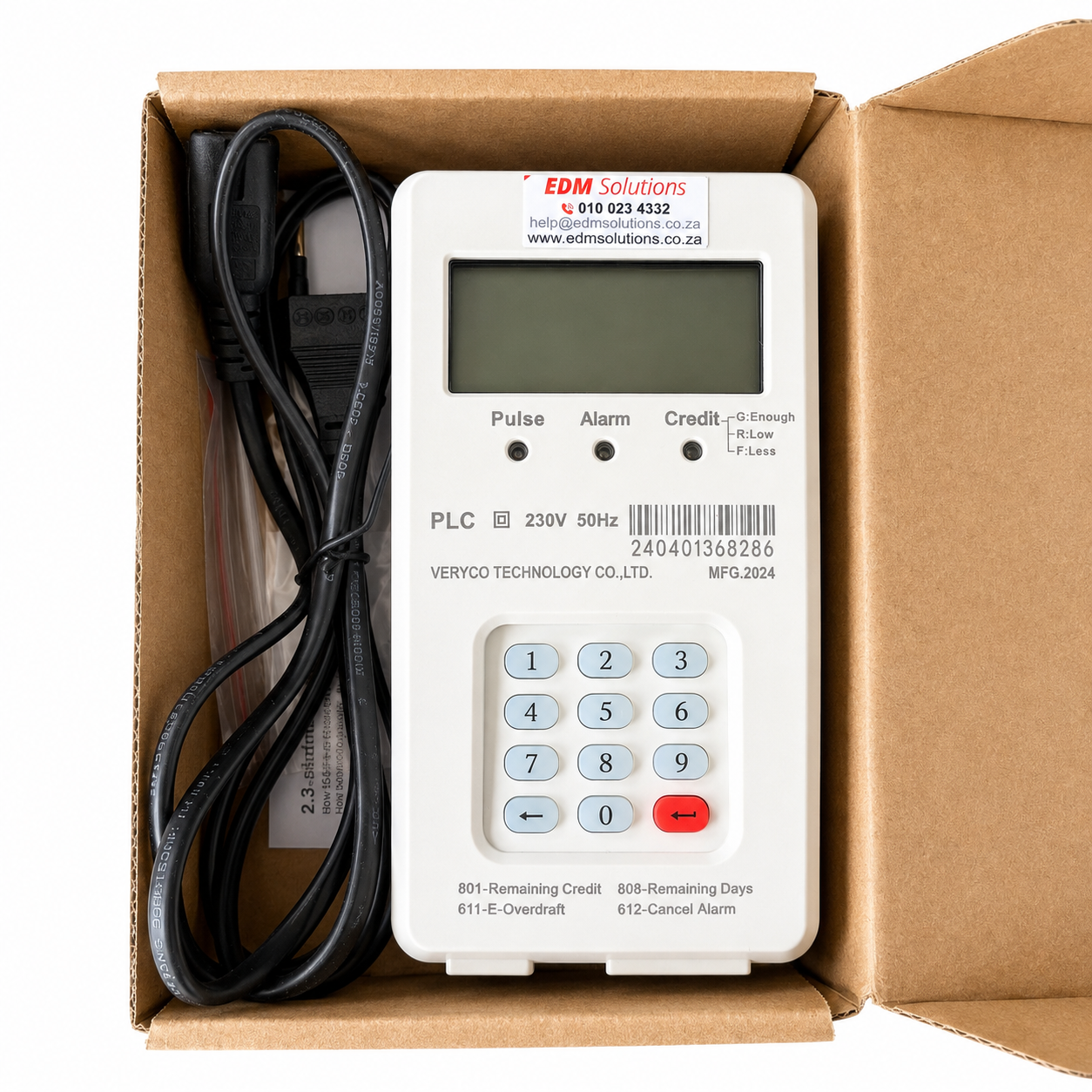

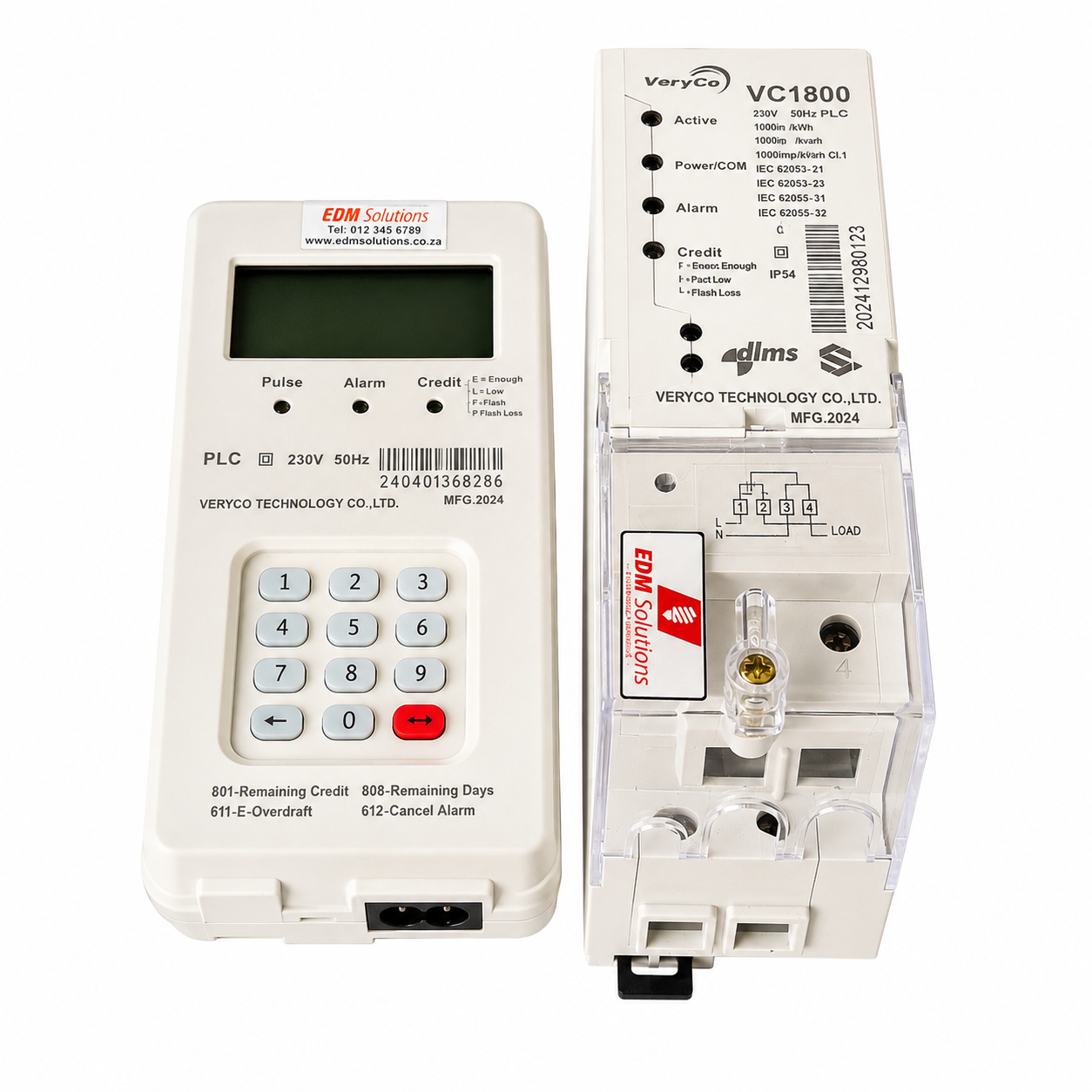

VeryCo VC1800 Single Phase DIN Rail Split Prepaid Electricity Meter

Meter Type: Single phase split prepaid electricity meter Model: VC1800 Brand: VeryCo Installation Type: DIN rail meter Network Type: Single phase two wire Meter Structure: Split meter with MCU measurement control unit and CIU customer interface unit Payment Modes: Prepayment and credit or post-payment modes Token Entry: 20-digit STS encrypted numeric token Communication Protocol: DLMS CIU Communication: PLC communication to CIU depending on configuration Remote Communication Options: RF, FSK, Wi-SUN, LoRa, LoRaWAN, PLC, G3-PLC, G3 Hybrid PLC and RF, GPRS, 3G, 4G and NB-IoT depending on ordered configuration Nominal Voltage: 230V AC Nominal Frequency: 50Hz, 60Hz option available Operating Voltage: 80 percent to 120 percent Un Limit Voltage: 60 percent to 190 percent Un Maximum Continuous Current: 80A Basic Reference Current: 5A Accuracy Class: Class 1 active energy and Class 2 reactive energy Pulse Constant: 1000 imp/kWh and 1000 imp/kVArh Connection Type: Sequential LLNN Disconnection Device: Polarity independent solid state latching contactor 90A Protection Class: Class II double insulated Ingress Protection: IP54 Meter Dimensions: 120mm width x 192mm height x 60mm depth with extended terminal cover Mounting: DIN rail mounting with optional top mounting bracket Material: UV stable polycarbonate blend with flame-retardant material Operating Temperature: -25C to +75C Storage Temperature: -40C to +85C Humidity: Maximum 95 percent, annual mean 75 percent Key Features: STS vending, prepaid and postpaid mode switching, TOU metering, load control, tamper detection, optical communication, CIU support and smart metering communication options Application: Residential units, flats, rental properties, estates, complexes, landlords and smart prepaid electricity projects
